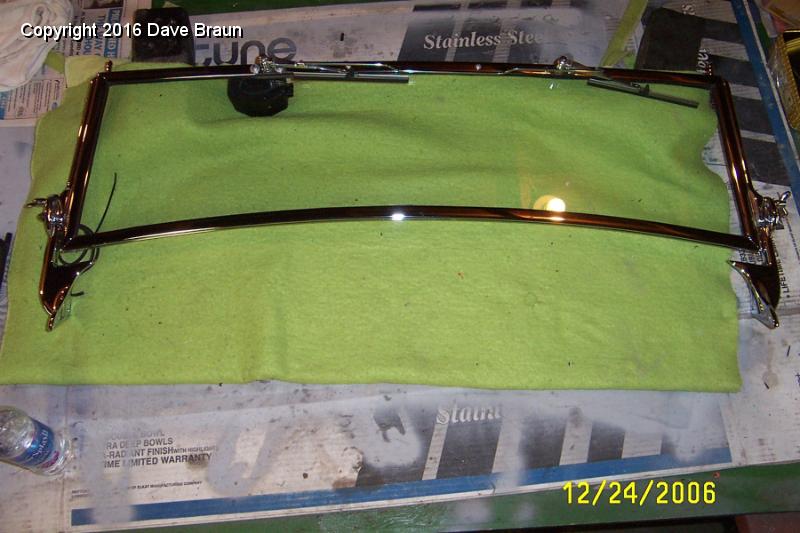

  wiper motor wrong segment gear orientation.jpg - Everything installed. Except the motor moved in such a way to make me expect that the wipers would park as shown. When I switched them on, they jammed. It turned out that the instructions I got from the archives were 90 degress off from what my motor required. So I disassembled the wiper motor, fixed a few things that I thought I could have done better, and reoriented the round gear 90 degrees from where it was.
Wiper motor mount from top





18 | Everything installed. Except the motor moved in such a way to make me expect that the wipers would park as shown. When I switched them on, they jammed. It turned out that the instructions I got from the archives were 90 degress off from what my motor required. So I disassembled the wiper motor, fixed a few things that I thought I could have done better, and reoriented the round gear 90 degrees from where it was. Download
