Rear engine (gearbox) mounts
Ready for more work
Getting oil pressure as shown at rockers (2)
Setting valves to 010
Bedding cam and setting up timing and fuel (1)

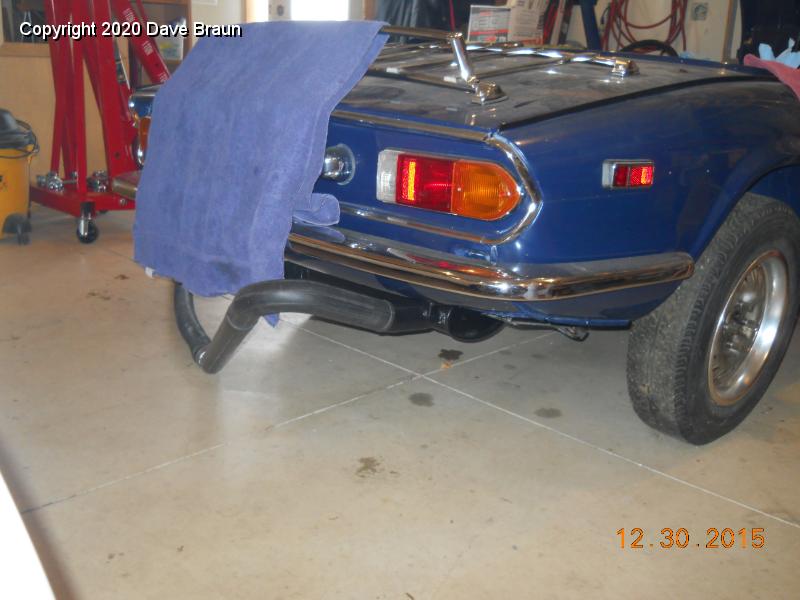

  Bedding cam and setting up timing and fuel (3).JPG - This is just before the plastic pipe from my shop vac melted... while doing the cam bedding and setting up the fuel and idle, and timing. I finally ended up at 16 BTDC at 800 RPM, and 33 BTDC at all in. Balanced the carbs, and set the mixture.






25 | This is just before the plastic pipe from my shop vac melted... while doing the cam bedding and setting up the fuel and idle, and timing. I finally ended up at 16 BTDC at 800 RPM, and 33 BTDC at all in. Balanced the carbs, and set the mixture. Download
