nose piece and emblem in place

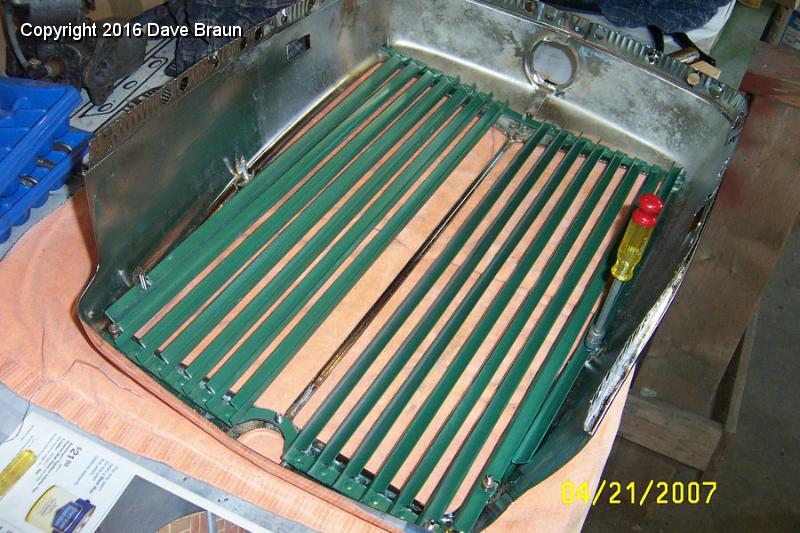

  Installing grille.jpg - Installing the grille in the shell. After I polished the clear coat, I fitted the grille. I discovered I had to persuade some of the studs over, or the grill holes wouldn't line up. On the stud that was JB Welded, I just re-did it and waited overnight to torque it.
JB Weld grille surround stud
Protecting grille stats while installing the radiator
Lining up the shell and radiator mounting holes
Shell and radiator assy
Protecting radiator from fan and shims to mount hardware

2 | Installing the grille in the shell. After I polished the clear coat, I fitted the grille. I discovered I had to persuade some of the studs over, or the grill holes wouldn't line up. On the stud that was JB Welded, I just re-did it and waited overnight to torque it. Download
