finished seat back
Installing seat bottom hinge
seat back and hinge alignment
Test fitting seats
Test fitting seat back

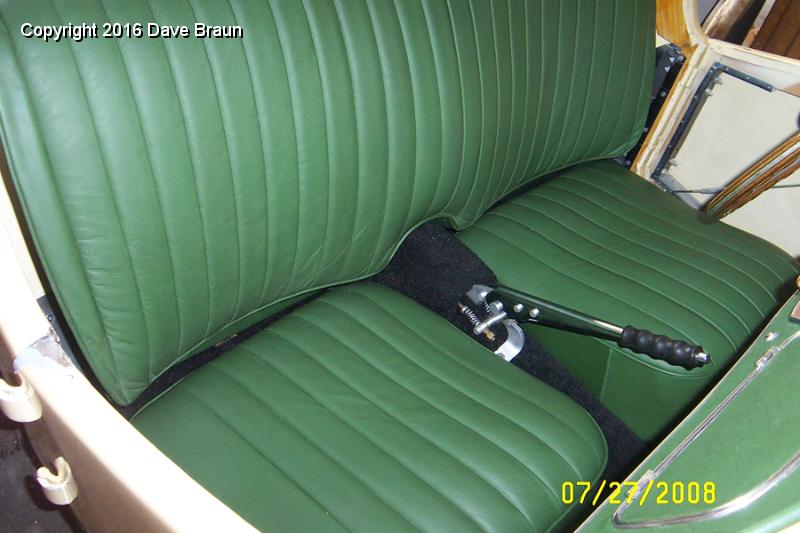

  gap between seats and seat back.jpg - Seat gap after the hinge brackets are installed. Moving the seat bracket holes in the seat bottoms will probably allow a neater installation and provide more adjustment in seat rake. The brackets and hinges were not installed in the previous black upholstery job.
Seat back from rear





59 | Seat gap after the hinge brackets are installed. Moving the seat bracket holes in the seat bottoms will probably allow a neater installation and provide more adjustment in seat rake. The brackets and hinges were not installed in the previous black upholstery job. Download
