new upholstery back, LH and unknown pcs

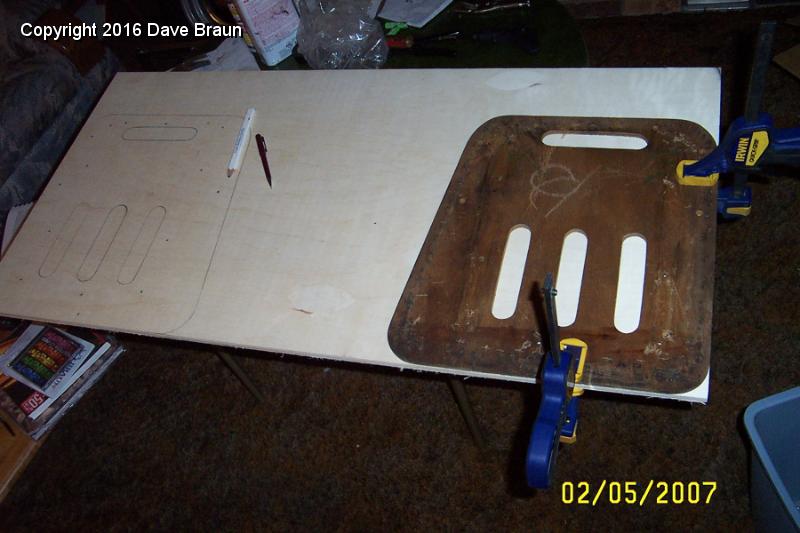

  Tracing new bases.jpg - Tracing new boards. The wood is a 2'x4' x 1/2" thick marine grade exterior ply with sanded top surface. It was only $5 so if I don't like the flatness, I can just do it over. The original boards were closer to 3/8", but they also fractured some plies.
base cut out holes drilled for air RH
base air slots cut
delayed by jig saw
Chasing seat bottom t nuts
seat bottoms installing t nuts

2 | Tracing new boards. The wood is a 2'x4' x 1/2" thick marine grade exterior ply with sanded top surface. It was only $5 so if I don't like the flatness, I can just do it over. The original boards were closer to 3/8", but they also fractured some plies. Download
