Original style ignition and headlamp switch
Origninal switch broken tab
Glove box ball catch
brackets on either side of glove box
Proper location for tach cable bracket

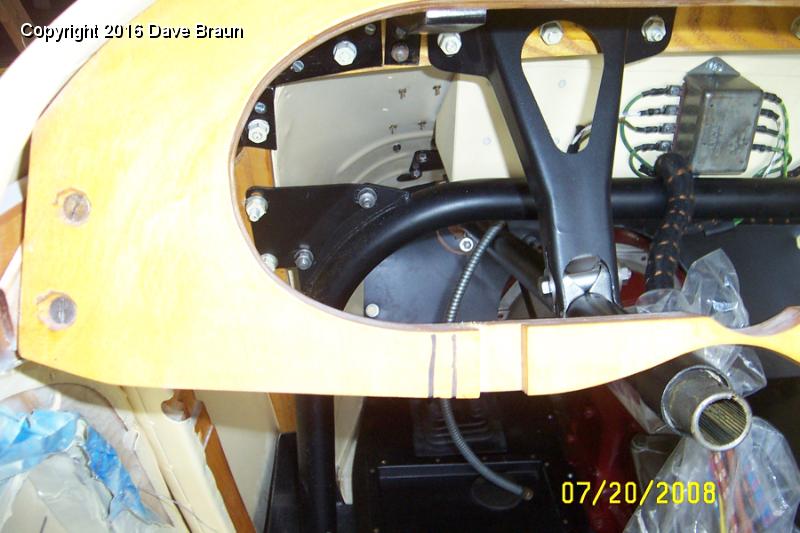

  Odometer adjustment relief is short.jpg - Test fitting the fascia showed the relief for the odometer knob is not far enough outboard. I drew a fairly extreme line, and then realized I was going to remove the excess with the dremel, and perhaps I should be more accurate. So a second measurement was made.
Relief for the odometer knob
Mirror in place and trim for glove box
Test fitting panel with clamps
Straightening speedometer cured relief problem
Test fitting fascia with piping

63 | Test fitting the fascia showed the relief for the odometer knob is not far enough outboard. I drew a fairly extreme line, and then realized I was going to remove the excess with the dremel, and perhaps I should be more accurate. So a second measurement was made. Download
