Starter and generator brackets
Starter dirty
field coils starter
starter disassembled and clean
field coil brush hanging by few strands

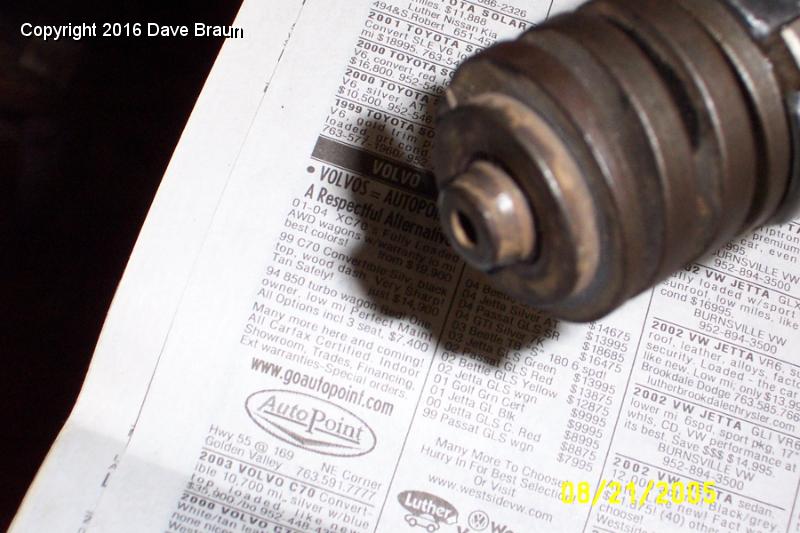

  starter not a castleated nut with a cotter.JPG - Not a castleated nut. This is supposed to be cottered on by a pin. I have no idea if I should create some flats and put it in a vise, or what. It turns out that there is a clip that has to be removed by compressing the large spring.
new brush install for starter field coil
Brushes being positioned in starter
Testing starter off battery Its alive
removing pully from generator
bracket orientation generator

8 | Not a castleated nut. This is supposed to be cottered on by a pin. I have no idea if I should create some flats and put it in a vise, or what. It turns out that there is a clip that has to be removed by compressing the large spring. Download
