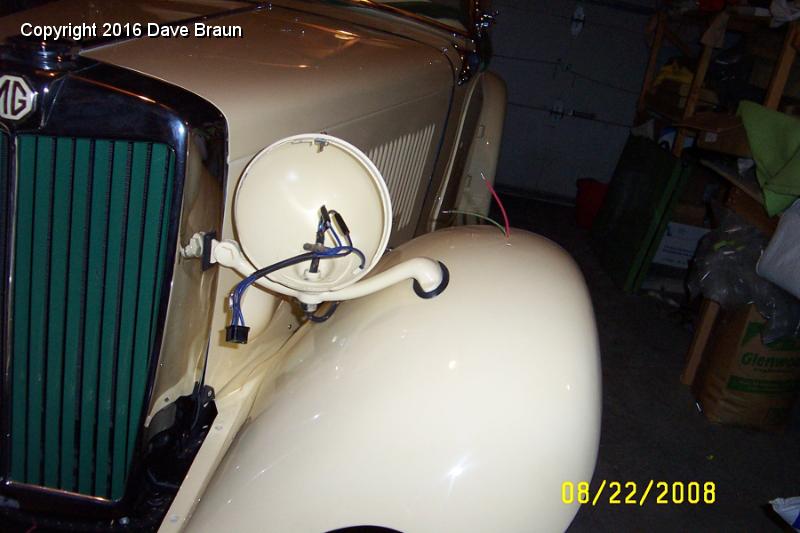

  wiring front lamp with ground problems.jpg - The head lamp bucket is installed and the pig tail adapter I fabricated is hooked up. The head lamp won't light. I've traced the problem to the head lamp stay to wing hardware connection. I will scrape that clean first and recheck. Providing a separate ground with an allegator clip works, so I know that I just have to establish a ground plane.
