Positive Ground car, but I put 'red' on supply (neg) not positive
Fixing the bracket to the dash support panel
  Shrink wrapped terminals and vinyl tape for neg ground devices.jpg
Center terminal is positive which is ground on the car but hot on devices
The black wire goes to the brown hot all the time supply side- the red wire to the black positive ground
Installation from the side
Socket mounted in holder
Barely visible in this view and only because the flash illuminated it

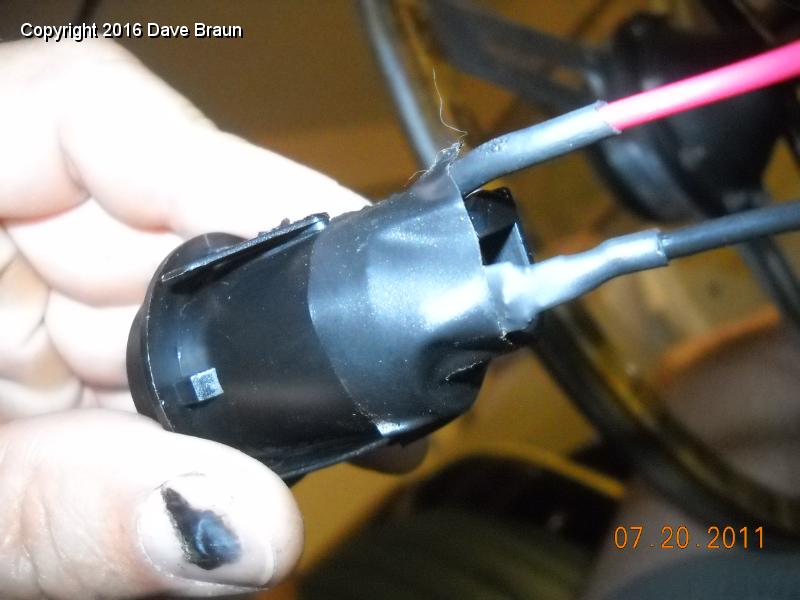

3 | Shrink wrapped terminals and vinyl tape for neg ground devices Download
